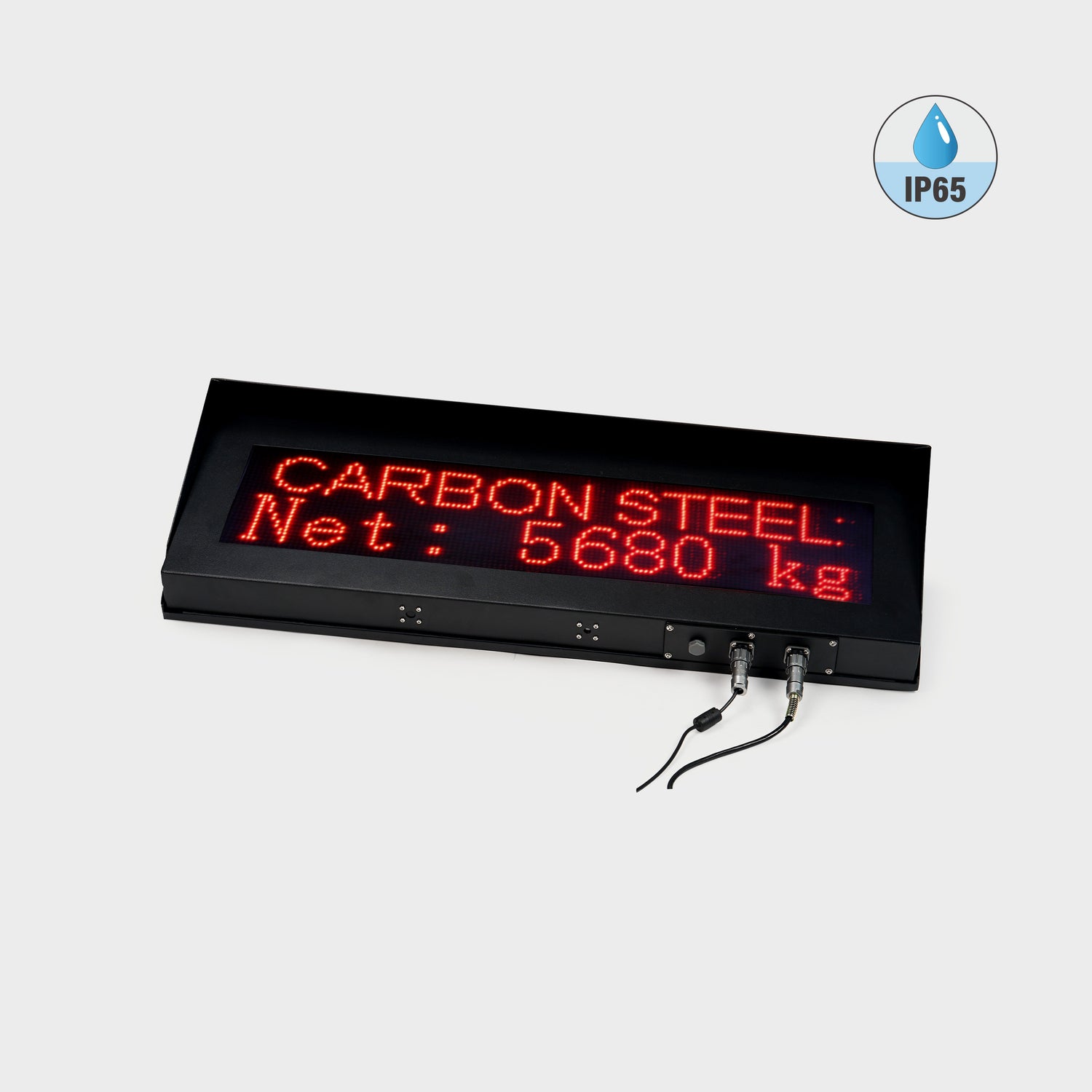

EH-MRD65 Matrix Remote Display

The EH-MRD65 remote display offers excellent weighing data visibility for most EH – indicators which is very useful in outdoor applications. The big matrix LED display is visible for 75m/250ft viewing range and +/-70 degree viewing angle. The convenient bottom access panel provides easy access to internal wiring and configuration switches. With its study construction, it’s a perfect solution if you are looking for an addition for your indicator display.

     Features

• Powder-coat-painted steel enclosure with built-in rain/sun hood includes four mounting flanges
• Easy-to-see big red LED display with 16 levels of adjustable brightness
• Displays up to 999,999 or down to -999,999
• With RS232, RS485, CAN BUS or Ethernet communication ports
• Optional in WIFI or BT wireless data transmission
• With condensate discharger to avoid inside water condensing
• With on-board light sensor automatically adjusts LED brightness to be visible in all levels of light from direct sunlight to total darkness
